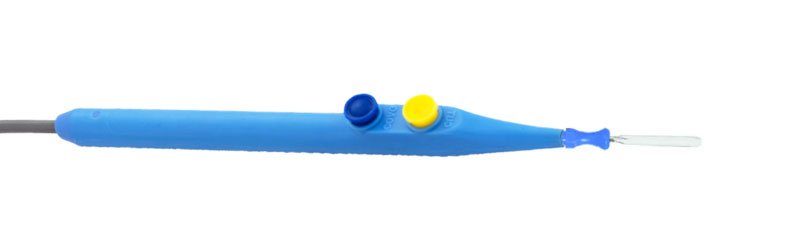

Pencil Hand Control Shaft 4.0mm

 1

Applications

Instruction for Use

Download

Available Options

ThumbnailSKUArticle NumberConnectorPencil TypesTotal Length
3254mm Erbe T-SeriesSTANDARD3M
325C4mm Erbe T-SeriesSTANDARD5M
NS3254mm Erbe T-SeriesNONSTICK3M
NS325C4mm Erbe T-SeriesNONSTICK5M
326Martin, Erbe T-Series, Integra, Berchtold, AesculapSTANDARD3M
326CMartin, Erbe T-Series, Integra, Berchtold, AesculapSTANDARD5M
NS326Martin, Erbe T-Series, Integra, Berchtold, AesculapNONSTICK3M
NS326CMartin, Erbe T-Series, Integra, Berchtold, AesculapNONSTICK5M
327Valleylab, Bowa, Erbe icc Erbe vio, eschmann, conmedSTANDARD3M
327CValleylab, Bowa, Erbe icc Erbe vio, eschmann, conmedSTANDARD5M
NS327Valleylab, Bowa, Erbe icc Erbe vio, eschmann, conmedNONSTICK3M
NS327CValleylab, Bowa, Erbe icc Erbe vio, eschmann, conmedNONSTICK5M
3285mm Erbe acc series standard ICC Series vio, Karl StorzSTANDARD3M
328C5mm Erbe acc series standard ICC Series vio, Karl StorzSTANDARD5M
NS3285mm Erbe acc series standard ICC Series vio, Karl StorzNONSTICK3M
NS328C5mm Erbe acc series standard ICC Series vio, Karl StorzNONSTICK5M

Additional information

Regulatory Compliance

MDD 93/42/EEC (Class Is / IIb), MDR 2017/745 (Transiting)

Manufacturing Unit

Fully Compliant under ISO 13485:2016 QMS

Product Classification

Class IIb as per Annex VIII, Chapter III Rule 9
Non-measuring, Transient use, Surgically invasive, Active Medical Device

Biocompatibility

Tested and compliant with ISO 10993 series standards

Primary Material

Validated Medical Grade Polymers

Secondary Material

Medical Grade AISI 210/220 Stainless Steel

Surface Finish

Polished passivated, corrosion resistance

Safety Compliance

REACH and RoHS compliant

Manufacturing Environment

Assembled and packed in controlled environment

Reprocessing Status

Not Applicable, it is a Single Use Product

Reprocessing Method

Not Applicable

Sterilization Method

Ethylene Oxide (EtO) Sterilization Processed

EMDN Code

K020101

Packaging Unit

Individually packed (1 piece per unit) / 20 units per box

Minimum Order Quantity

20 Pieces / 01 Box

Manufacturer

Electro Range MFG Co. – ERMC®
