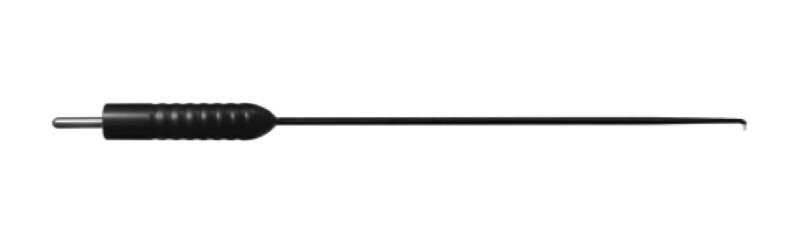

Arthroscopic Electrode Long Shaft 4.0mm

 1

Applications

Instruction for Use

Download

Info Product

Available Options

ThumbnailSKUArticle NumberElectrode ShapeTip SizeTotal LengthElectrode Types
NA756Needle Electrode 90° Angular with handle0.6x1.5mm140mmSTANDARD
NA756ANeedle Electrode 90° Angular with handle0.6x2.0mm140mmSTANDARD
NSNA756Needle Electrode 90° Angular with handle0.6x1.5mm140mmNONSTICK
NSNA756ANeedle Electrode 90° Angular with handle0.6x2.0mm140mmNONSTICK
NA757Needle Electrode 90° Angular with handle0.6x4mm140mmSTANDARD
NA757ANeedle Electrode 90° Angular with handle0.6x5mm140mmSTANDARD
NSNA757Needle Electrode 90° Angular with handle0.6x4mm140mmNONSTICK
NSNA757ANeedle Electrode 90° Angular with handle0.6x5mm140mmNONSTICK
NA758Knife Electrode 45° Angled4mm140mmSTANDARD
NA758AKnife Electrode 45° Angled5mm140mmSTANDARD
NSNA758Knife Electrode 45° Angled4mm140mmNONSTICK
NSNA758AKnife Electrode 45° Angled5mm140mmNONSTICK
NA759Button Electrode with handle 90° angled1.5x4mm140mmSTANDARD
NA759AButton Electrode with handle 90° angled1.5x5mm140mmSTANDARD
NSNA759Button Electrode with handle 90° angled1.5x4mm140mmNONSTICK
NSNA759AButton Electrode with handle 90° angled1.5x5mm140mmNONSTICK
NA760Ball Electrode with handle3mm140mmSTANDARD
NA760ABall Electrode with handle5mm140mmSTANDARD
NSNA760Ball Electrode with handle3mm140mmNONSTICK
NSNA760ABall Electrode with handle5mm140mmNONSTICK

Additional information

Regulatory Compliance

MDD 93/42/EEC (Class Is / IIb), MDR 2017/745 (Transiting)

Manufacturing Unit

Fully Compliant under ISO 13485:2016 QMS

Product Classification

Class IIb as per Annex VIII, Chapter III Rule 9
Non-measuring, Transient use, Surgically invasive, Active Medical Device

Biocompatibility

Tested and compliant with ISO 10993 series standards

Primary Material

Validated Medical Grade Polymers

Secondary Material

Medical Grade AISI 210/220 Stainless Steel

Surface Finish

Polished passivated, corrosion resistance

Safety Compliance

REACH and RoHS compliant

Manufacturing Environment

Assembled and packed in controlled environment

Reprocessing Status

Yes, it is Reusable Product. See IFU for reprocessing info

Reprocessing Method

Validated Steam Autoclave (121°C – 135°C, 3–5 min Holding Time)

Chemical Disinfection

CE-Certified validated agent suitable for Electrosurgical Instruments

EMDN Code

L180601

Packaging Unit

Individually packed (1 piece per unit) / 20 units per box

Minimum Order Quantity

20 Pieces / 01 Box

Manufacturer

Electro Range MFG Co. – ERMC®
