Name: Active Electrodes Long Shaft 4.0mm
SKU: 29103
Availability: InStock

₨ 1

Applications

Instruction for Use

Download

Info Product

SKU: N/A Categories: Products, Single Use Active Electrodes, Sterile Single use Electrosurgical

Available Options

Article Number	Electrode Shape	Tip Size	Total Length	Electrode Types
DE152	Ball Electrode	6mm	140mm	STANDARD
DE153	Ball Electrode	10mm	140mm	STANDARD
DNSE152	Ball Electrode	6mm	140mm	NONSTICK
DNSE153	Ball Electrode	10mm	140mm	NONSTICK
DE147	Knife Electrodes	3.3x25mm	140mm	STANDARD
DE147A	Knife Electrodes	3.0x20mm	140mm	STANDARD
DNSE147	Knife Electrodes	3.3x25mm	140mm	NONSTICK
DNSE147A	Knife Electrodes	3.0x20mm	140mm	NONSTICK
DE118	Spatula Electrodes	2.4x20mm	140mm	STANDARD
DE118A	Spatula Electrodes	2.4x12mm	140mm	STANDARD
DNSE118	Spatula Electrodes	2.4x20mm	140mm	NONSTICK
DNSE118A	Spatula Electrodes	2.4x12mm	140mm	NONSTICK
DE146	Knife Electrode	2.4x10mm	140mm	STANDARD
DE146A	Knife Electrode	2.5x12mm	140mm	STANDARD
DNSE146	Knife Electrode	2.4x10mm	140mm	NONSTICK
DNSE146A	Knife Electrodes	2.5x12mm	140mm	NONSTICK
DE144	Spatula Electrodes	2.0x16mm	80mm	STANDARD
DE144A	Spatula Electrodes	2.4X20mm	80mm	STANDARD
DNSE144	Spatula Electrodes	2.0x16mm	80mm	NONSTICK
DNSE144A	Spatula Electrodes	2.4X20mm	80mm	NONSTICK
DE121	Wire Loop Electrode	4mm	140mm	STANDARD
DE121A	Wire Loop Electrode	5mm	140mm	STANDARD
DNSE121	Wire Loop Electrode	4mm	140mm	NONSTICK
DNSE121A	Wire Loop Electrode	5mm	140mm	NONSTICK
DE122	Wire Loop Electrode	6mm	140mm	STANDARD
DE122A	Wire Loop Electrode	8mm	140mm	STANDARD
DNSE122	Wire Loop Electrode	6mm	140mm	NONSTICK
DNSE122A	Wire Loop Electrode	8mm	140mm	NONSTICK

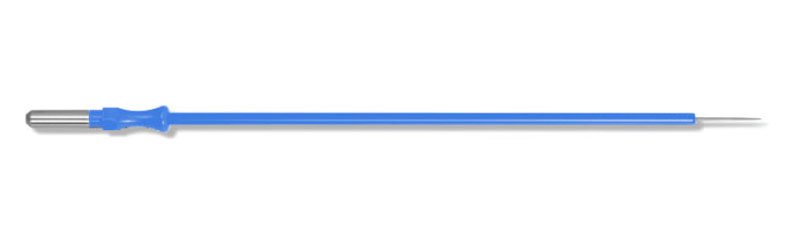

DE119	Needle Electrode	0.8x12mm	140mm	STANDARD
DE119A	Needle Electrode	0.5x12mm	140mm	STANDARD
DNSE119	Needle Electrode	0.8x12mm	140mm	NONSTICK
DNSE119A	Needle Electrode	0.5x12mm	140mm	NONSTICK
DE203	Needle Electrode	1.0x10mm	140mm	STANDARD
DE203A	Needle Electrode	0.5x12mm	140mm	STANDARD
DNSE203	Needle Electrode	1.0x10mm	140mm	NONSTICK
DNSE203A	Needle Electrode	0.8x10mm	140mm	NONSTICK
DE156	Loop Electrodes	10x10mm	140mm	STANDARD
DE156A	Loop Electrodes	10x15mm	140mm	STANDARD
DNSE156	Loop Electrodes	10x10mm	140mm	NONSTICK
DNSE156A	Loop Electrodes	10x15mm	140mm	NONSTICK
DE157	Loop Electrodes	15x15mm	140mm	STANDARD
DE157A	Loop Electrodes	15x10mm	140mm	STANDARD
DNSE157	Needle Electrode	15x15mm	140mm	NONSTICK
DNSE157A	Needle Electrode	15x10mm	140mm	NONSTICK
DE158	Needle Electrode	15x20mm	140mm	STANDARD
DE158A	Needle Electrode	15x25mm	140mm	STANDARD
DNSE158	Needle Electrode	15x20mm	140mm	NONSTICK
DNSE158A	Needle Electrode	15x25mm	140mm	NONSTICK
DE159	Loop Electrodes	20x20mm	140mm	STANDARD
DE159A	Loop Electrodes	20x10mm	140mm	STANDARD
DNSE159	Loop Electrodes	20x20mm	140mm	NONSTICK
DNSE159A	Loop Electrodes	20x30mm	140mm	NONSTICK
DE160	Loop Electrodes	20x25mm	140mm	STANDARD
DE160A	Loop Electrodes	20x30mm	140mm	STANDARD
DNSE160	Loop Electrodes	20x25mm	140mm	STANDARD
DNSE160A	Loop Electrodes	20x30mm	140mm	NONSTICK
DE161	Loop Electrodes	10mm	140mm	NONSTICK
DE161A	Loop Electrodes	8mm	140mm	STANDARD
DNSE161	Loop Electrodes	10mm	140mm	STANDARD
DNSE161A	Loop Electrodes	8mm	140mm	NONSTICK
DE162	Loop Electrodes	15mm	140mm	STANDARD
DE162A	Loop Electrodes	12mm	140mm	STANDARD
DNSE162	Loop Electrodes	15mm	140mm	NONSTICK
DNSE162A	Loop Electrodes	12mm	140mm	NONSTICK
DE163	Loop Electrodes	20mm	140mm	STANDARD
DE163A	Loop Electrodes	28mm	140mm	STANDARD
DNSE163	Loop Electrodes	20mm	140mm	NONSTICK
DNSE163A	Loop Electrodes	28mm	140mm	NONSTICK
DE164	Loop Electrodes	25mm	140mm	STANDARD
DE164A	Loop Electrodes	22mm	140mm	STANDARD
DNSE164	Loop Electrodes	25mm	140mm	NONSTICK
DNSE164A	Loop Electrodes	22mm	140mm	NONSTICK
DE165	Loop Electrodes	30mm	140mm	STANDARD
DE165A	Loop Electrodes	28mm	140mm	STANDARD
DNSE165	Loop Electrodes	30mm	140mm	NONSTICK
DNSE165A	Loop Electrodes	28mm	140mm	NONSTICK

Additional information

Additional information

Regulatory Compliance	MDD 93/42/EEC (Class Is / IIb), MDR 2017/745 (Transiting)
Manufacturing Unit	Fully Compliant under ISO 13485:2016 QMS
Product Classification	Class IIb as per Annex VIII, Chapter III Rule 9 Non-measuring, Transient use, Surgically invasive, Active Medical Device
Biocompatibility	Tested and compliant with ISO 10993 series standards
Primary Material	Validated Medical Grade Polymers
Secondary Material	Medical Grade AISI 210/220 Stainless Steel
Surface Finish	Polished passivated, corrosion resistance
Safety Compliance	REACH and RoHS compliant
Manufacturing Environment	Assembled and packed in controlled environment
Reprocessing Status	Not Applicable, it is a Single Use Product
Reprocessing Method	Not Applicable
Sterilization Method	Ethylene Oxide (EtO) Sterilization Processed
EMDN Code	K020101
Packaging Unit	Individually packed (1 piece per unit) / 20 units per box
Minimum Order Quantity	20 Pieces / 01 Box
Manufacturer	Electro Range MFG Co. – ERMC®
